ARTIST: What’s Happening Under The Hood?

Ray tracing in ARTIST models the propagation of sunlight through a solar tower power plant by following individual light rays from the sun to the receiver. Each ray interacts with heliostat surfaces according to geometric optics, allowing the resulting flux distribution on the receiver to be predicted from the physical configuration of the plant.

In contrast to conventional ray tracers, the ray tracer in ARTIST is fully differentiable. While conventional ray tracing predicts the flux distribution for a given plant configuration in a forward computation, differentiability allows changes in the flux distribution to be translated backwards into parameter updates through gradient-based optimization. This enables efficient reconstruction and optimization of solar tower power plant models.

ARTIST computes gradients of quantities defined on the predicted flux distribution with respect to model parameters such as heliostat surface shapes, alignment parameters, or motor positions. These gradients are propagated through the entire simulation using automatic differentiation, allowing discrepancies between simulated and measured flux distributions to directly guide parameter updates during optimization.

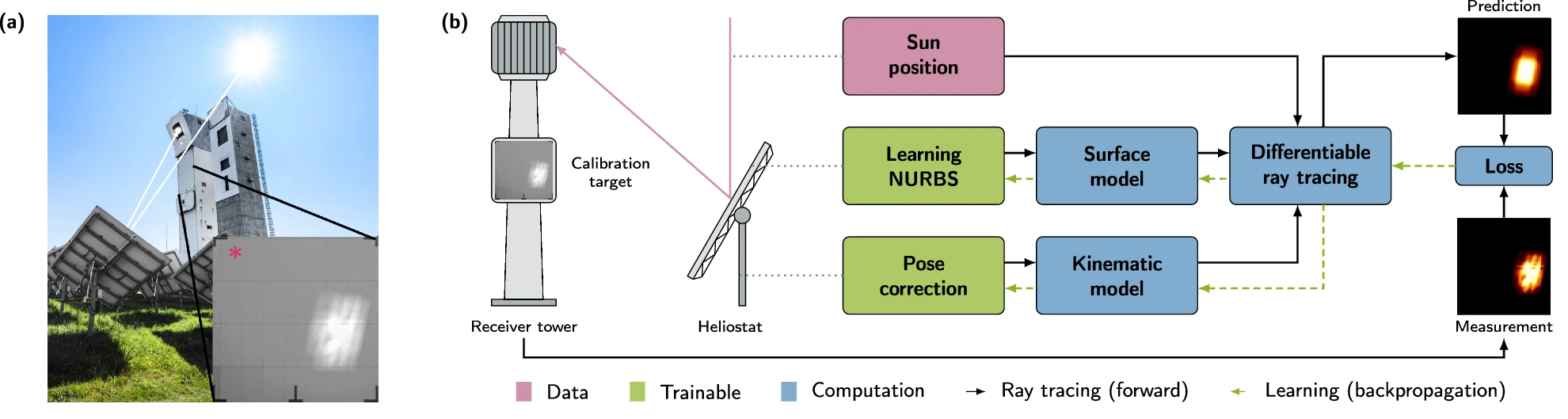

a. The CSP plant in Jülich, Germany. The heliostats, shown from behind, focus the sunlight on the receiver surface of the tower. Located below the receiver is the calibration target. The inset (*) shows a focal spot image as taken during calibration. b. Schematic overview of the in-situ optimization with differentiable ray tracing for learning the heliostat parameters. Taken from M. Pargmann, J. Ebert, M. Götz et al. Automatic heliostat learning for in situ concentrating solar power plant metrology with differentiable ray tracing. Nat Commun 15, 6997 (2024). https://doi.org/10.1038/s41467-024-51019-z

Differentiable ray tracing in ARTIST is designed to be robust, work effectively in parallel, and take advantage of GPU acceleration. While most of our design decisions are handled automatically, a few points are worth noting. This page provides a brief overview of some of the core principles governing how ARTIST handles processes and data internally.

Coordinates

ARTIST uses the east, north, up (ENU) coordinate system in a four-dimensional format. To understand the implications of this, consider two example tensors:

point_tensor = torch.tensor([e, n, u, 1])
direction_tensor = torch.tensor([e, n, u, 0])

Both tensors have the same first three elements:

• The first element is the east coordinate.

• The second element is the north coordinate.

• The third element is the up coordinate.

However, the fourth element is an extension to a 4D representation of 3D coordinates. This enables ARTIST to perform rotations and translations efficiently within a single affine transformation matrix. With this 4D representation, it is important to understand:

• The final element in a tensor representing a point is always 1.

• The final element in a tensor representing a direction is always 0.

Batch Processing

ARTIST leverages batch processing to align thousands of heliostats and trace millions of rays in parallel. This is made possible by representing all data in ray tracing scenarios as tensors. PyTorch tensors are highly efficient for large-scale computations and matrix operations, particularly on GPUs. By contrast, performing the same tensor operations on CPUs is significantly slower, which is why GPU execution is strongly recommended. Even on a single GPU, ARTIST can compute alignment and raytracing for many heliostats simultaneously.

To facilitate this, heliostat and tower data are stored internally by their properties within large, multidimensional tensors rather than as individual objects. Some examples of heliostat properties are:

• positions

• surface_points

• surface_normals

• initial_orientations

• translation_deviation_parameters

• rotation_deviation_parameters

For a heliostat field with N = 2000 heliostats, ARTIST does not create 2000 separate heliostat objects. Instead, each property is stored as a single multidimensional tensor, with the property value for a specific heliostat placed at a specific index.

This approach is an example of a Structure of Arrays (SoA) layout, as opposed to the traditional Array of Structures (AoS) approach, where each heliostat would be an object containing all its properties. In SoA:

• Memory for each property is contiguous, allowing coalesced memory access on GPUs.

• Tensor operations can be parallelized across all heliostats efficiently.

• Computations like alignment updates or ray tracing can be performed as batch matrix operations, which are highly optimized in frameworks like PyTorch.

By contrast, an AoS layout (one object per heliostat) would scatter memory across many objects, making GPU parallelization inefficient and increasing memory overhead.

The SoA scheme enables highly parallelized computations and results in the following key tensors:

Key Tensors in ARTIST

Name	Shape	Description
positions	torch.Size([N, D])	Positions of all heliostats in the group
surface_points	torch.Size([N, P, D])	Surface points of all heliostats
surface_normals	torch.Size([N, P, D])	Surface normals of all heliostats
initial_orientations	torch.Size([N, D])	Initial orientations of all heliostats
translation_deviation_parameters	torch.Size([N, K_t])	Translation deviation parameters for each heliostat in the kinematics model Check out Understanding Heliostats to find out more about heliostats in ARTIST.
rotation_deviation_parameters	torch.Size([N, K_r])	Rotation deviation parameters for each heliostat in the kinematics model
non_optimizable_parameters	torch.Size([N, A_param_non_optimizable, A_num])	Non-optimizable actuator parameters for each heliostat
optimizable_parameters	torch.Size([N, A_param_optimizable, A_num])	Optimizable actuator parameters for each heliostat
nurbs_control_points	torch.Size([N, F, u, v, 3])	Control points for NURBS surfaces for all heliostats
nurbs_degrees	torch.Size([2])	Spline degrees for NURBS surfaces in the u- and v-direction
active_heliostats_mask	torch.Size([N])	A boolean mask indicating which heliostats are active
active_surface_points	torch.Size([N_active, P, D])	Surface points of all active heliostats
active_surface_normals	torch.Size([N_active, P, D])	Surface normals of all active heliostats
active_nurbs_control_points	torch.Size([N_active, F, u, v, 3])	NURBS control points for all active heliostats
preferred_reflection_directions	torch.Size([N_active, P, D])	Preferred reflection directions for all active heliostats

with:

Explanation of the Tensor Shapes

Parameter	Description
N	The total number of heliostats in the group
D	The number of dimensions (which is always 4 in ARTIST’s 4D coordinate system)
P	The number of surface points (or surface normals) per heliostat
K_t	The number of kinematics translation parameters
K_r	The number of kinematics rotation parameters
F	The number of facets per heliostat
u	The number of control points in the u-direction for NURBS surfaces (see our tutorial on NURBS)
v	The number of control points in the v-direction for NURBS surfaces (see our tutorial on NURBS)
A_param_non_optimizable	The number of non-optimizable actuator parameters for this actuator type
A_param_optimizable	The number of optimizable actuator parameters for this actuator type
A_num	The number of actuators for the selected kinematics type
N_active	The number of active heliostats

Since a heliostat surface is typically modeled using multiple facets (see this info on heliostats), the total number of surface points is internally distributed uniformly among these facets. During ray tracing, each surface point is associated with exactly one surface normal. Consequently, the number of surface points is always equal to the number of surface normals.

A parameter that may require additional explanation is N_active, which denotes the number of active heliostats. This parameter allows specific heliostats to be addressed during operational tasks, such as calibration or optimization. N_active can even be larger than N, since a single heliostat can be duplicated multiple times to represent different training data samples in the optimization process. In this case, N_active counts all active heliostats including their duplicates.

To better understand this concept, we need to consider heliostat groups, which we discuss in the next section.

Heliostat Groups

In a solar tower power plant, a heliostat field may consist of multiple heliostat types with different mechanical designs. For example, heliostats may be equipped with different numbers of actuators or different kinematics models. However, batch processing in ARTIST – where multiple heliostats are processed simultaneously – requires that all heliostats behave identically. This is not the case when heliostats use different actuator or kinematics types.

That is why ARTIST internally organizes heliostats into heliostat groups. A single HeliostatGroup contains all heliostats in the field that share the same combination of actuator and kinematics types. Multiple different groups may exist within a single heliostat field. Batch processing is performed within each group, while different groups are processed sequentially.

ARTIST provides abstract base classes for heliostat groups, actuators, and kinematics models that define common methods to be implemented by each subtype.

When initializing a HeliostatGroup in ARTIST, its type is automatically inferred by checking the provided actuator and kinematics types. In practice, this means that you never have to worry about creating a heliostat group yourself manually – they are created and managed automatically.
